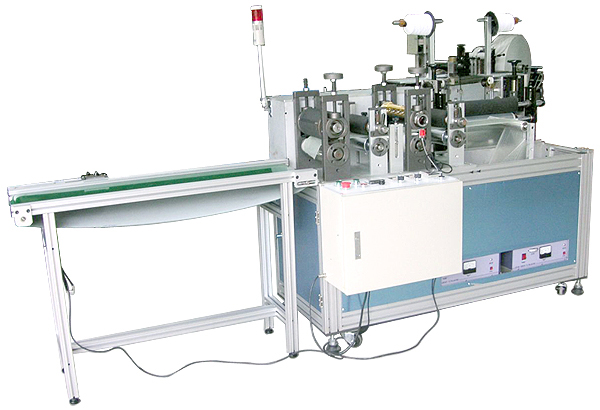

Disposable Medical Machine - Shoe Cover Making
Model:EGN-2014E
As a leading Disposable Medical Machine manufacturer, Ever Green Ultrasonic designed the EGN-2014E to automate disposable PE shoe cover production with automatic tension control and automatic edge control.
Specifications:
- Require material
- Material
- Width: 350mm
- Length: 400mm (depend on the size)
- Spec.: 40g
- PE film
- Width: 350mm
- Length: 400mm (depend on the size)
- Thickness: 0.04-0.06mm
- Material
- Require operator: 1 person/machine
Features:
- Automatic tension control.
- Automatic edge control.
- Adjustable ultrasonic output.
- All-aluminum-alloy construction.
| Model | Model: EGN-2014E |
|---|---|
| Dimension | 3,700 x 800 x 1,360 mm |
| Frequency | 20 kHz |
| Capacity | 60 pcs/min |
| Max. Working Width | 180 x 410 mm |
| Elec. Source | 220VAC, 1Ø, 40A |
| Output Power | 1,400W |
| Motor | 1 HP |
| Air Requirement | 1 HP |
| Net Weight | 820 kg |
Q: What is a disposable medical device?
A: A disposable medical device is any instrument, apparatus, or appliance intended for one-time use to prevent cross-contamination and ensure hygiene in healthcare environments. Our shoe cover making machine is designed specifically to manufacture these essential protective items efficiently.
Q: What can this Disposable Medical Machine produce?
A: The EGN-2014E is engineered specifically for automatic PE shoe cover production. It uses ultrasonic bonding to join non-woven material and PE film without stitching or glue.
Q: What is the production capacity of the EGN-2014E?
A: The machine runs at up to 60 pcs/min, with a maximum working width of 180 x 410 mm, suitable for mid-to-high volume shoe cover production lines.
Q: What raw materials does the machine require?
A: The machine processes non-woven material and PE film, each up to 350mm in width; PE film thickness should be between 0.04-0.06mm. Contact us for a detailed material specification sheet.
Q: How many operators are needed to run the machine?
A: The EGN-2014E is designed for single-operator operation (1 person per machine), supported by its automatic tension control and automatic edge control systems.
Q: Can Ever Green Ultrasonic customize this Disposable Medical Machine for different shoe cover sizes?
A: Yes. As a Disposable Medical Machine manufacturer, Ever Green Ultrasonic offers customized specifications based on your required shoe cover dimensions and material types. Contact us for a formal quotation and lead time.
A: A disposable medical device is any instrument, apparatus, or appliance intended for one-time use to prevent cross-contamination and ensure hygiene in healthcare environments. Our shoe cover making machine is designed specifically to manufacture these essential protective items efficiently.
Q: What can this Disposable Medical Machine produce?
A: The EGN-2014E is engineered specifically for automatic PE shoe cover production. It uses ultrasonic bonding to join non-woven material and PE film without stitching or glue.
Q: What is the production capacity of the EGN-2014E?
A: The machine runs at up to 60 pcs/min, with a maximum working width of 180 x 410 mm, suitable for mid-to-high volume shoe cover production lines.
Q: What raw materials does the machine require?
A: The machine processes non-woven material and PE film, each up to 350mm in width; PE film thickness should be between 0.04-0.06mm. Contact us for a detailed material specification sheet.
Q: How many operators are needed to run the machine?
A: The EGN-2014E is designed for single-operator operation (1 person per machine), supported by its automatic tension control and automatic edge control systems.
Q: Can Ever Green Ultrasonic customize this Disposable Medical Machine for different shoe cover sizes?
A: Yes. As a Disposable Medical Machine manufacturer, Ever Green Ultrasonic offers customized specifications based on your required shoe cover dimensions and material types. Contact us for a formal quotation and lead time.
