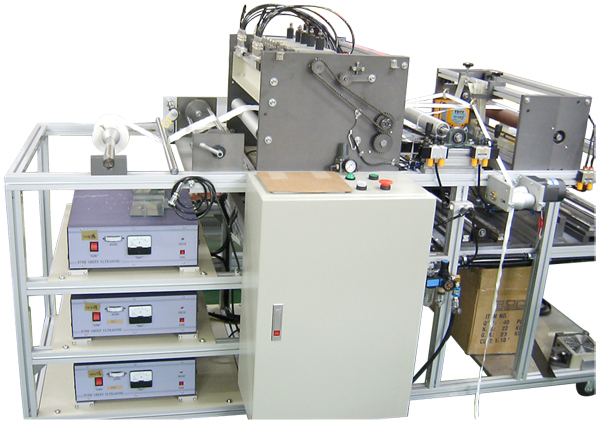

ULTRASONIC WIPER CUTTING MACHINE
Model:EGN-2014A
The ultrasonic wiper cutting machine is especially manufactured for microfiber wiper slitting and cross-cutting. With high-frequency ultrasonic vibration, the equipment cuts and seals fabric edges at the same time, helping to minimize fraying and particle shedding compared to conventional mechanical cutting. For different fabric widths, the operation mode of the machine is easy to adjust to fit the demands. And it's not complicate to operate at all; one person is enough for operating this product. The ultrasonic wiper cutting machine, it's the equipment that could provide fray-free, sealed-edge cutting for cleanroom and precision wiper production.
Ultrasonic Cutting Principle (20Khz High-Frequency Vibration)
The EGN-2014A Ultrasonic Cutting Machine is equipped with a 20Khz ultrasonic system that applies high-frequency horn vibration to the fabric contact point. This is a characteristic feature of ultrasonic cutting technology, which generates localized frictional heat to soften the material during the cutting process — helping to reduce mechanical resistance and support precise, smooth cuts on synthetic fabrics such as microfiber wipers.
Cut-and-Seal Function (Reduced Fraying & Particle Shedding)
As is typical of ultrasonic cutting technology, the high-frequency vibration can fuse the edges of synthetic fabrics at the moment of cutting, forming a sealed edge. This cut-and-seal characteristic helps minimize fabric fraying and particle shedding compared to conventional mechanical cutting methods — a feature especially valued in the production of low-linting wipers for cleanroom and precision-cleaning applications.
Ideal for Cleanroom Wiper & Synthetic Fabric Cutting
The EGN-2014A Ultrasonic Cutting Machine is designed for high-efficiency slitting and cross-cutting of microfiber wipers and various synthetic textiles, commonly used in cleanroom wiper manufacturing, industrial wipe production, and precision fabric processing. It supports a maximum material width of 12" and a maximum roll diameter of 300mm, suitable for standard microfiber wiper roll specifications.
| Model | EGN-2014A |
|---|---|
| Power Source | 220VAC, 1Ø (Single phase), 15A, 60Hz |
| Machine Speed (Capacity) | Slitting speed: 4m/min | Cross-cut: 17 pcs/min for 9" wipers |
| Working Size | Width 12" max |
| Machine Dimension | (L)2500mm x (W)1500mm x (H)1400mm |
| Ultrasonic System | 20Khz, Horn 210mm x 2 pcs. & 58mm x1 pc. |
| Suitable Fabric | Micro Wiper, width 12", roll diameter 300mm |
A: The machine performs slitting at 4m/min and cross-cutting at up to 17 pieces per minute for 9" wipers.
Q: What is the maximum working width and roll diameter this Ultrasonic Cutting Machine supports?
A: It supports fabric up to 12" wide and a maximum roll diameter of 300mm, matching standard microfiber wiper roll specifications.
Q: What ultrasonic frequency and horn configuration does the EGN-2014A use?
A: The machine runs a 20Khz ultrasonic system with two 210mm horns and one 58mm horn.
Q: What power source does the machine require?
A: 220VAC, single phase, 15A, 60Hz.
Q: What fabrics is this Ultrasonic Cutting Machine suitable for?
A: It's designed for microfiber (micro wiper) fabric up to 12" wide and other synthetic textiles that require fray-free, sealed-edge cutting.
Q: What are the overall dimensions of the EGN-2014A?
A: (L)2500mm x (W)1500mm x (H)1400mm.
